3 Types Of Cylinder Heads In Modern Engines

Different engines use different cylinder head types. The type of head used depends on several factors such as the engine’s configuration, vehicle application, and required performance. The essential components of internal-combustion engines are the cylinder heads. The right type of cylinder head should be used.

This section will discuss the most commonly used cylinder heads in modern automobiles. We’ll also talk about the materials used to manufacture these parts by cylinder head makers. Finally, we will look at the manufacturing process of cylinder head components to learn how they are made.

Types And Applications Of Cylinder Heads

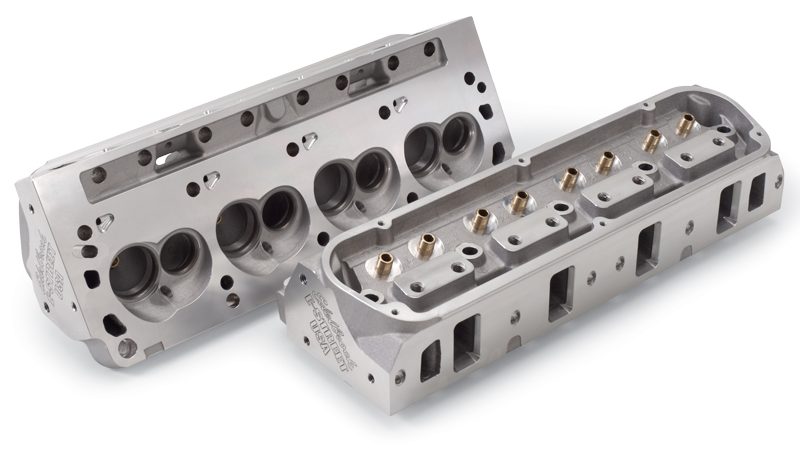

The standard cylinder head, a piece of aluminum or cast iron, is found on the top end of the engine blocks or cylinders. It covers the cylinders or cylinders for fuel/air mixture combustion. You will also find pathways to intake and exhaust gas, as well as many other engine components.

There are many configurations and designs for cylinder TrickFlow Heads. The type of engine determines which cylinder head components will be in which position. These heads can be divided into three types.

1. Type Flathead Cylinder Head

Flathead cylinder heads are the earliest. It was made of one piece of cast metal and had no mechanical parts. The head was simple to make and cheaper to produce. This allowed cooling fluid to flow efficiently. It was also light and compact which allowed for an efficient engine.

Despite its simplicity, the flathead engine-type cylinder head had its drawbacks. The valves were located inside the engine block as well as on the sides. This resulted in intake gases following along, an awkward 90deg path. This led to inefficient combustion. Exhaust gases could also remain in ports for too long. This led to cooling problems.

Flathead cylinders are no longer popular due to their design shortcomings. Today, it is only found in small engines like those used in lawnmowers, small tractors, and many other farm vehicles. The cylinder heads are a common engine part in both car and truck categories.

2. Overhead Valve (OHV) Cylinder Head Type

This type of cylinder head is very popular and has been for decades. It is also known by the I-type cylinder heads and features a complicated construction. The OHV head contains the component of the flatbed type. It also houses the spark plugs, and passageways for intake- and exhaust gasses.

Because of the placement of valves and intake passages in the engine, OHV cylinder heads produce higher performance. The improved design of the paths makes intake gases flow more quickly and smoothly. The head is also less hot than the flathead.

The design of the OHV heads for cylinder heads brings the camshaft closer to the crankshaft. This arrangement simplifies and improves the drive system. This arrangement improves the engine’s performance.

3. Overhead Camshaft (Ohc) Cylinder Head Type

OHC is the abbreviation for overhead cylinder heads. This is because of its unique design. The head contains the valvetrain parts, sparkplugs, intake and exhaust ports, as well as the camshaft.

The camshaft position in the cylinder heads can vary. It can be located in the middle, between each row of valves, or on top. OHC cylinder heads come in a single, or dual configuration. The single OHC type uses a single camshaft to operate the intake and exhaust valves.

Two separate camshafts are required for the valves in a dual OHC head. The cost of making single- or SOHC heads is less than those made from double or DOHC heads. But, DOHC heads provide better performance. In situations where performance may be a requirement, cylinder head manufacturers might prefer such heads.
